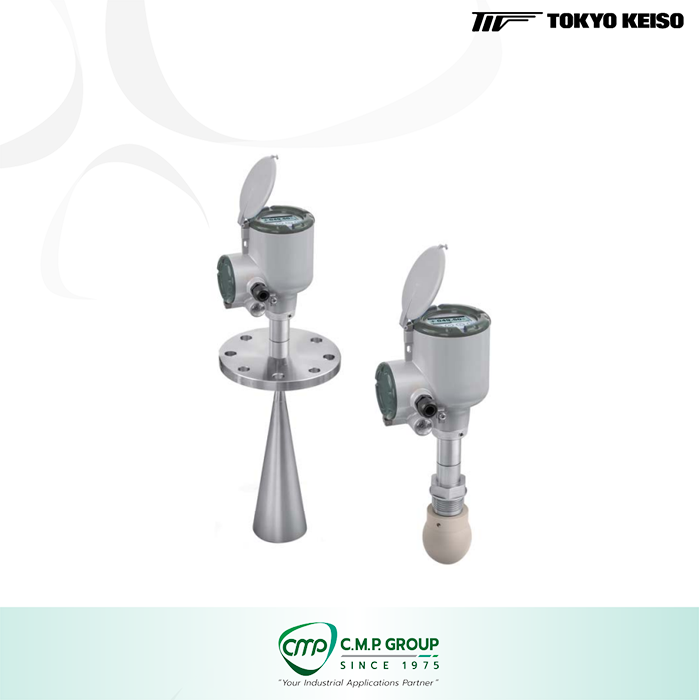

TLR7400
คุณสมบัติสินค้า:
Microwave level meter
หมวดหมู่ : INSTRUMENTS , TOKYO KEISO , Level Measurement , Level Gauges ,
แบรนด์ : TOKYO KEISO
Share
Features
- Non-contact, continuous level measurement
- Low total cost achieved by 2-wire system
- Measuring various objects such as liquids and slurries
- Displaying and outputting measurements as level, ullage, volume, and mass
- PTFE drop antennas assuring high corrosion resistance
- PEEK drop antennas operable at up to 200°C
- Wide operation range: -50ºC to 200ºC and vacuum to 4 MPa
- High-accuracy level measurement independent of changes in temperature, pressure, or density
- Easy mounting on top of tanks
- Simple mounting thanks to the compact housing design
- Quick start with simple parameter setting
- Quick start with interactive parameter setting
- Maintenance-free with no moving parts
Short Specifications
| Measurable materials | Liquids, paste and Slurries |
|---|---|
| Measuring range | Max.100m |
| Temperature | Process connection: -50 to 200 °C Ambient: -40 to 80 °C |
| Pressure | 0 kPa (abs) to 4.0 MPa |
| Process connecion |
|
| Material | Stainless steel(316L), PTFE, PEEK |
| Power supply | 24V DC |
| Output type | Level, Distance, Capacity and mass |
| Antenna type | Metal horn, Drop |
