NE

คุณสมบัติสินค้า:

เพิ่มรายการโปรด

เปรียบเทียบ

หมวดหมู่ : INSTRUMENTS , TOKYO KEISO , Flow Measurement , Direct Observation Type Flowmeters ,

แบรนด์ : TOKYO KEISO

Features

Cost saving and quick delivery
- Calibration with water realizes cost saving and quick delivery.
Easy installation
- No straight runs for upstream or downstream required for process installation.
- No power supply is needed.
Cost effectiveness
- The simple mechanical construction offers most cost effective flow measurement.
Direct observation of measuring liquid
- In addition to flow rate measurement, the measured fluids are directly observed for better process fluid quality control.

Short Specifications

Application

Water or equivalent liquids to water

Connection Size

15A to 100A

Maximum operating Pressure

Differs on sizes

Size	Max. OP. Press(MPa)
15A	1.0
20A, 25A	0.8
40A, 50A, 65A	0.6
80A, 100A	0.4

Temperature Range

Max. 120°C, Allowable thermal shock: 80°C

Scale Specification
(Calibrated with water)

Model	Connection Size	Scale Range (Double Range)
Model	Connection Size	m³/h	L/min
NE-015-03-□	15A JIS10KRF	30 to 300 L/h	0.5 to 5
NE-015-05-□		50 to 500 L/h	1 to 10
NE-015-08-□		80 to 800 L/h	1.3 to 13
NE-015-10-□		0.1 to 1	1.8 to 18
NE-015-15-□		0.15 to 1.5	2.5 to 25
NE-020-15-□	20A JIS10KRF	0.15 to 1.5	2.5 to 25
NE-020-20-□		0.2 to 2	3 to 30
NE-020-30-□		0.3 to 3	5 to 50
NE-025-20-□	25A JIS10KRF	0.2 to 2	4 to 40
NE-025-30-□		0.3 to 3	5 to 50
NE-025-40-□		0.4 to 4	6 to 60
NE-025-50-□		0.5 to 5	9 to 90
NE-025-60-□		0.6 to 6	10 to 100
NE-040-05-□	40A JIS10KRF	0.5 to 5	8 to 80
NE-040-08-□		0.8 to 8	13 to 130
NE-040-10-□		1 to 10	18 to 180
NE-040-15-□		1.5 to 15	25 to 250
NE-050-10-□	50A JIS10KRF	1 to 10	18 to 180
NE-050-15-□		1.5 to 15	25 to 250
NE-050-20-□		2 to 20	35 to 350
NE-050-25-□		2.5 to 25	40 to 400
NE-065-15-□	65A JIS10KRF	1.5 to 15	25 to 250
NE-065-20-□		2 to 20	35 to 350
NE-065-30-□		3 to 30	50 to 500
NE-065-40-□		4 to 40	70 to 700
NE-080-30-□	80A JIS10KRF	3 to 30	50 to 500
NE-080-40-□		4 to 40	70 to 700
NE-080-50-□		5 to 50	-
NE-100-40-□	100A JIS10KRF	4 to 40	70 to 700
NE-100-50-□		5 to 50	-
NE-100-70-□		7 to 70	120 to 1200
NE-100-80-□		8 to 80	130 to 1300
NE-100-90-□		9 to 90	150 to 1500
NE-100-100-□		10 to 100	160 to 1600

Process Connection

JIS 10KRF Flange

Material

Body:: Cast iron, 304SS or SCS13
Tapered Tube:: Heat-resistant glass
Float:: SUS304
Gasket:: NBR

Indication Accuracy

±1.5% F.S.

Range Ability Std.

10 : 1

Related Flowmeters

Glass tube flowmeter (Standard): R-100

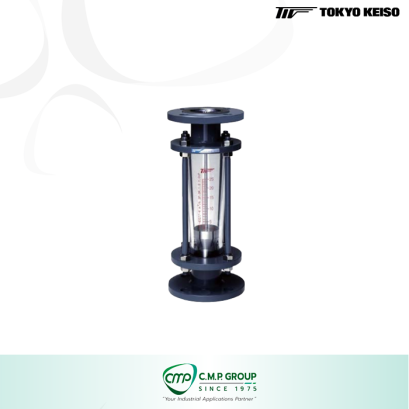

Glass tube flowmeter for large flow: R-101-E
Glass tube flowmeter with alarm contact: R-700
Acryl Tube Flowmeters: AC
All Teflon construction flowmeter: AC-T
