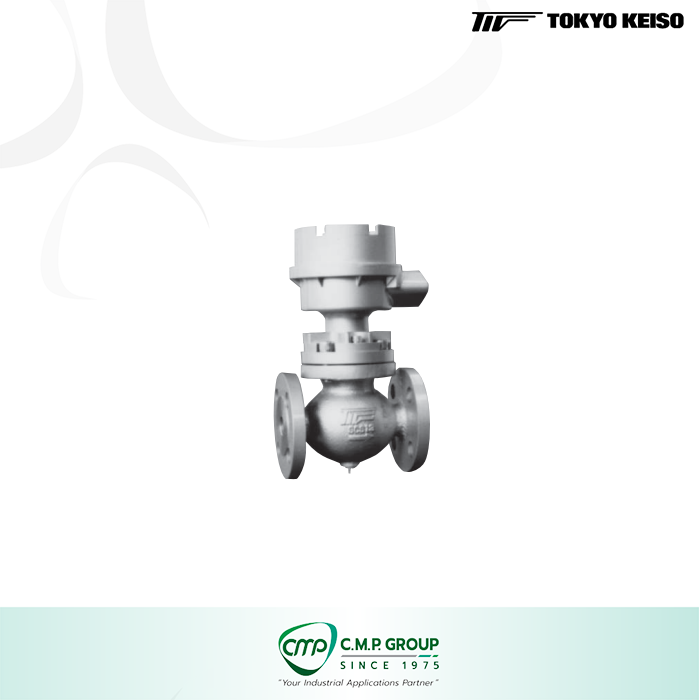

F-740
คุณสมบัติสินค้า:
หมวดหมู่ : INSTRUMENTS , TOKYO KEISO , Flow Measurement , Flow Switch / Flow Monitor ,
แบรนด์ : TOKYO KEISO
Share
Short Specifications
| Connection size | 15 mm(1/2") to 150 mm(6") |
|---|---|
| Measuring fluid | Liquid without solids (Viscosity: 5 mPa·s or less) |
| Fluid pressure | MAX.1.4Mpa |
| Fluid temperture | -10 to +80°C |
| Rating | JIS10 KRF, JIS10 KFF, ANSI Class 150, other flanges |
| Mounting direction | Horizontal |
| Alarm point | 1 point Low or High, SPDT |
| Setting accuracy | ±5% of setting value |
| Enclosure | Water tight, Flame proof (TIIS d2G4) or Intrinsically Safe (TIIS i3nG5) |
| Material | Body: FC200, SCS14 |
